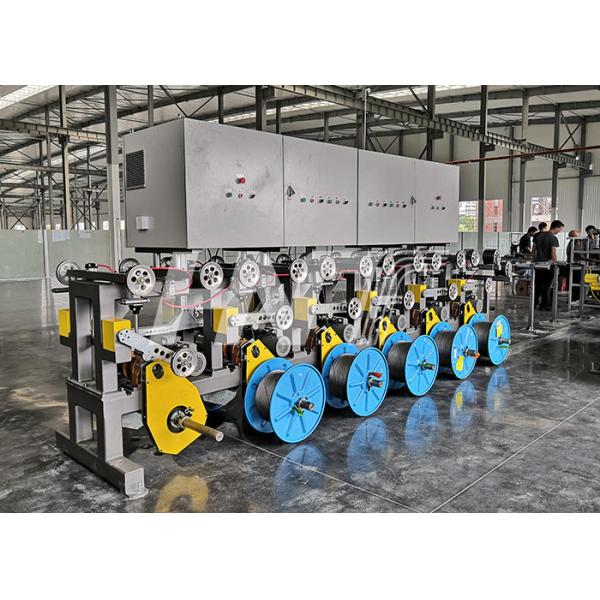

Multi Head Payoff Machine Flat Elevator Cable Payoff

Product Categories

Wuxi Hengtai Cable Machinery Manufacture Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : Wuxi

Brand Name : HNT

Certification : ISO9001:2008, CE, High-tech enterprise

MOQ : 1 set

Price : negotiable

Packaging Details : according to customer's requirements

Delivery Time : 30-120 days

Payment Terms : T/T, L/C

Model : Multi-Head Payoff

Application Wire Dia. : φ1-3mm

Application Line Speed : 40m/min

Max. Loading Capacity : 300kg

After-sales service provided : Engineers available to service machinery overseas

Warranty : 1 year

Contact Now

Payoff for Flat Cable:

Payoff Bobbin Size: Main dimension offered by customer;
Payoff Bobbin quantity: 24bobbin;
Tension range: 10N ~ 200N, error 3%;
Wire diameter: 1-3mm;
Maximum speed: 40m / min;
Tension control method: dancing wheel system, proportional pressure regulation PNEUMAX 171E2N.T.D.0009;
Tension adjustment: central control display adjustment;
Cylinder: PNEUMAX;
Maximum load capacity: 300kg.

Multi Head Payoff Machine Flat Elevator Cable Payoff
